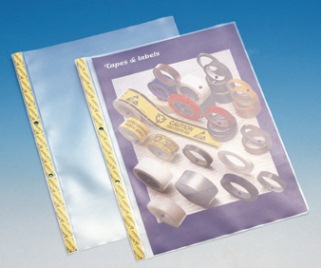

ESD/Cleanroom Document Holder (Soft Type)
Product Code: STCS-DHA4S
The range of document holders is ideal for ESD sensitive work areas whereby static control is critical. They can be used for documenting work procedures, flow charts, traveller sheets and work checklist. Unlike coated materials that degrade after usage, its permanent properties ensure that static electricity is controlled at desirable levels. The sides holes are specially designed for filing purposes with ESD ring files.
Material: Amide Free Polyethylene
Surface Resistivity 109 to 1010ohm/sq(permanent)
Decay Time- 1000v to 100v in 1.0 second (MIL Specs MIL-B-81705B Decay test)
Usable Size: 215mm x 310mm (for A4 documents)
Side seams with holes for filing: approx 15mm
Application: Suitable for Cleanroom and ESD applications (Documentations, Laboratories, Electronics Assembly areas).
NOTE: Material looks hazy due to impregnated ESD properties.
