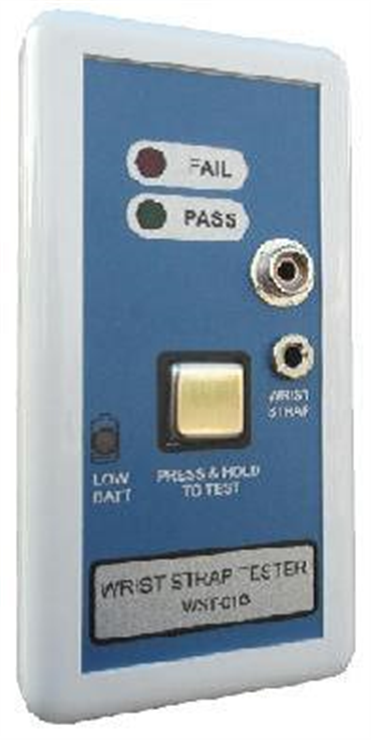

Wrist Strap Tester

ESD wrist strap is most commonly used protective devices which prevent the build-up of electrostatic charge on personnel. The random failure of wrist strap compromises the protection. Thus, it is important to test every wrist strap regularly.

Specifications:
Measurement Range : Wrist Strap 0.75 to 10 Meg ohm

Pass Indication : Resistance between 0.75 to 10 Meg ohm

                               Pass - GREEN LED

                   Low & High Fail - RED LED (with Alarm)

Test actuation: By Press & Hold metal sensor plate

Accuracy: +/- 10%

Power supply: 9 Volt Battery

Low Battery: Warning less than 7Volts

Dimensions: 135 x 70 x 25 mm

Weight: 150 gms (With Battery)
